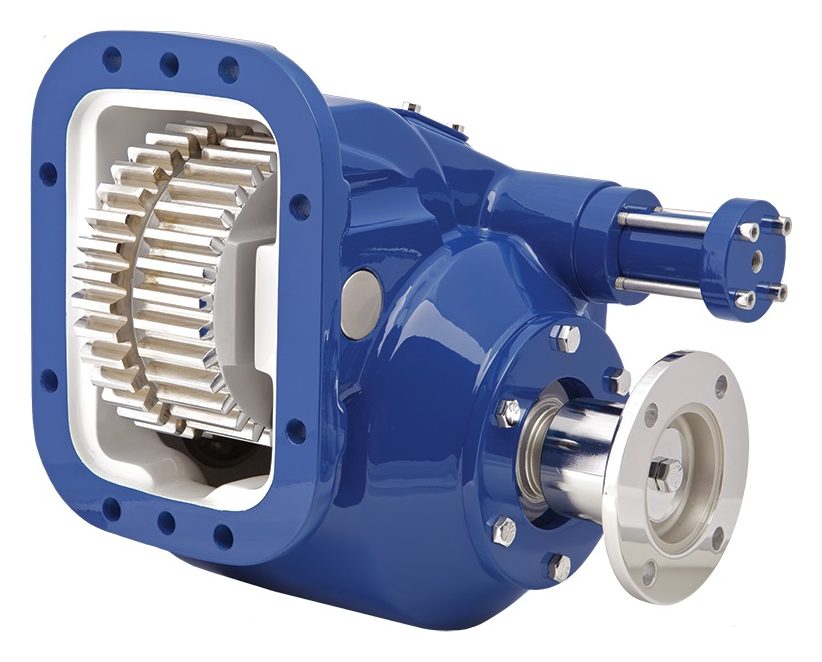

Muncie 82 Series PTO parts
The 82 is Muncie's heavy duty 8-bolt PTO for high volume pumps and blowers. Here is how its two parts books work and how to read the tag before you order.
82 Series at a glance
- Type
- Heavy duty lever or double acting air shift PTO, SAE 8-bolt mounting
- Housing
- Cast iron
- Speed ratios
- Nine codes, 05 (0.47:1) to 19 (1.89:1)
- Top rating
- 500 lb ft and 95 hp at 1,000 rpm intermittent, ratio 05
- Approximate weight
- 85 lb (38.6 kg)
- Main parts book
- SP18-03 82 Series Parts List and Service Manual (built after Nov 2017)
What the 82 is
The 82 Series is Muncie's top duty gear shift PTO for the 8-bolt opening. It has a cast iron housing, a lever or air shift, and a choice of single or dual hydraulic pump mounts. Muncie lists dump and tow and recovery as its target markets, and rates it to drive high volume pumps and high CFM blowers.
The air shift is double acting, so air moves the shift fork both into and out of gear. The direct mount pump flanges can be rotated to give the pump clearance, and two companion flange outputs are available for remote pump and driveline drives.
Where it fits
The 82 mounts on an SAE 8-bolt opening. Muncie's input gear list covers Eaton (E70, E80), Fuller (F11, F68), Mack (M65), Tremec or Spicer (S70) and universal gears (U57, U62, U68). The 8F mounting is the non-standard pattern for the Eaton Endurant E70 and E80. Muncie publishes 82 instructions for Eaton Endurant and PACCAR transmissions, including the TX1, and for fitting the Eaton Fuller UltraShift.
On the Detroit DT12, Muncie's DT12 sheet shows the 828S-U68 as a bottom mount PTO rated 500 lb ft and 95 hp. It needs an adapter gear: 40TA6479 for the DT12-OHE and DT12-OV, and 40TA6480 for the DT12-OVX.
Reading an 82 model number
An 82 tag reads: series, mounting, input gear, speed ratio, shift type, assembly arrangement, output, special feature. Muncie's example is 82 8S-U68-05 L-1-C-X: an 82 on an SAE 8-bolt standard mount, universal U68 gear, ratio 05, lever shift, arrangement 1, a 1410 companion flange output and no special features.
- Shift: L lever, M constant mesh, R double acting manual air, S 12 volt double acting electric over air, T air shift without the activation kit.
- Arrangement: 1 to 4 are standard housings and 5 to 8 are tall housings. Each set covers right or left side shaft low, with and without the gear to the rear.
- Special feature: P pressure lube, G greaseable shaft (EG, PG and ZG outputs only), 8 greaseable shaft plus pressure lube, X none.
See the model number guide for the other series.
Parts that wear and what to order
- Shift cylinder kit for the air shift options, which covers the piston housings, pistons and seals for both sides. The 82 parts list also has the double acting air shift and electric over air kits.
- Input and output gears by model, from the PTO Model Gear Chart section.
- Output shafts and flanges by output code, including the greaseable shaft option and the C or 2 companion flange.
- Gasket kit and rebuild kit for the housing, bearings and seals.
- Mounting kits for standard studs, metric studs and the Endurant metric stud kit, plus the pressure lube and dash light kits.
Questions we get about the 82
Which 82 parts book do I use?
Muncie publishes two. SP18-03 covers units built after November 2017 or with the R, S or T dual air shift. SP83-03 covers units built before November 2017. SP18-03 also has a table that converts the older air shift codes B, D, G, P, Q, V and 5 to R, S or T.
What is different about the 19 ratio?
The 19 ratio unit engages differently: the output gear meshes directly with the input gear, so the shift fork is flipped 180 degrees. Muncie also notes the 19 ratio cannot be sold in kit form.
Can I add my own lever shift?
Muncie supplies the PTO with an eye bolt and expects the installer to build the linkage. It has a detent to locate the positions but does not lock in them, so the linkage needs its own neutral detent.
82 Series parts breakdown
How the Muncie 82 Series PTO parts list is organised on our store. Each section opens the exploded view with every part number, the quantity used and an order button.
Muncie 82 Series
82 Series torque and horsepower by speed ratio
| Speed ratio code | Intermittent HP at 1,000 RPM (kW) | Intermittent torque lb ft (Nm) | Continuous torque lb ft (Nm) |
|---|---|---|---|
| 05 | 95 (71) | 500 (678) | 350 (475) |
| 06 | 85 (71) | 450 (610) | 315 (427) |
| 08 | 85 (63) | 450 (610) | 315 (427) |
| 09 | 78 (58) | 410 (556) | 287 (389) |
| 10 | 78 (58) | 410 (556) | 287 (389) |
| 12 | 71 (53) | 375 (508) | 263 (356) |
| 13 | 71 (53) | 375 (508) | 263 (356) |
| 15 | 67 (50) | 350 (475) | 245 (332) |
| 19 | 57 (43) | 300 (407) | 210 (285) |
Ratings as published by the manufacturer for the Muncie 82 Series PTO. Check the current Muncie application data for your transmission before you size a pump.
82 Series manuals
All 82 Series books: Muncie PTO parts manuals.
